Configuring Network and IP Address Settings from the UltraNEXUS-HD and UltraNEXUS-HD BLADE Server's Web Interface.

Here is how to configure network settings from the System Settings page of the unit's web interface. This includes setting IP, Subnet mask, Gateway, DNS, and NTP server addresses.

NOTE: Make sure the firmware is up to date in the unit (version 21.07.29).

To access the web interface type the current IP address of the unit into a web browser on a computer residing on the same network as the UltraNEXUS-HD or UltraNEXUS-HD BLADE Server, or from the WinLGX software, go to the Tools menu and select Web interface. Log in using the same user name and password you would use in the WinLGX software.

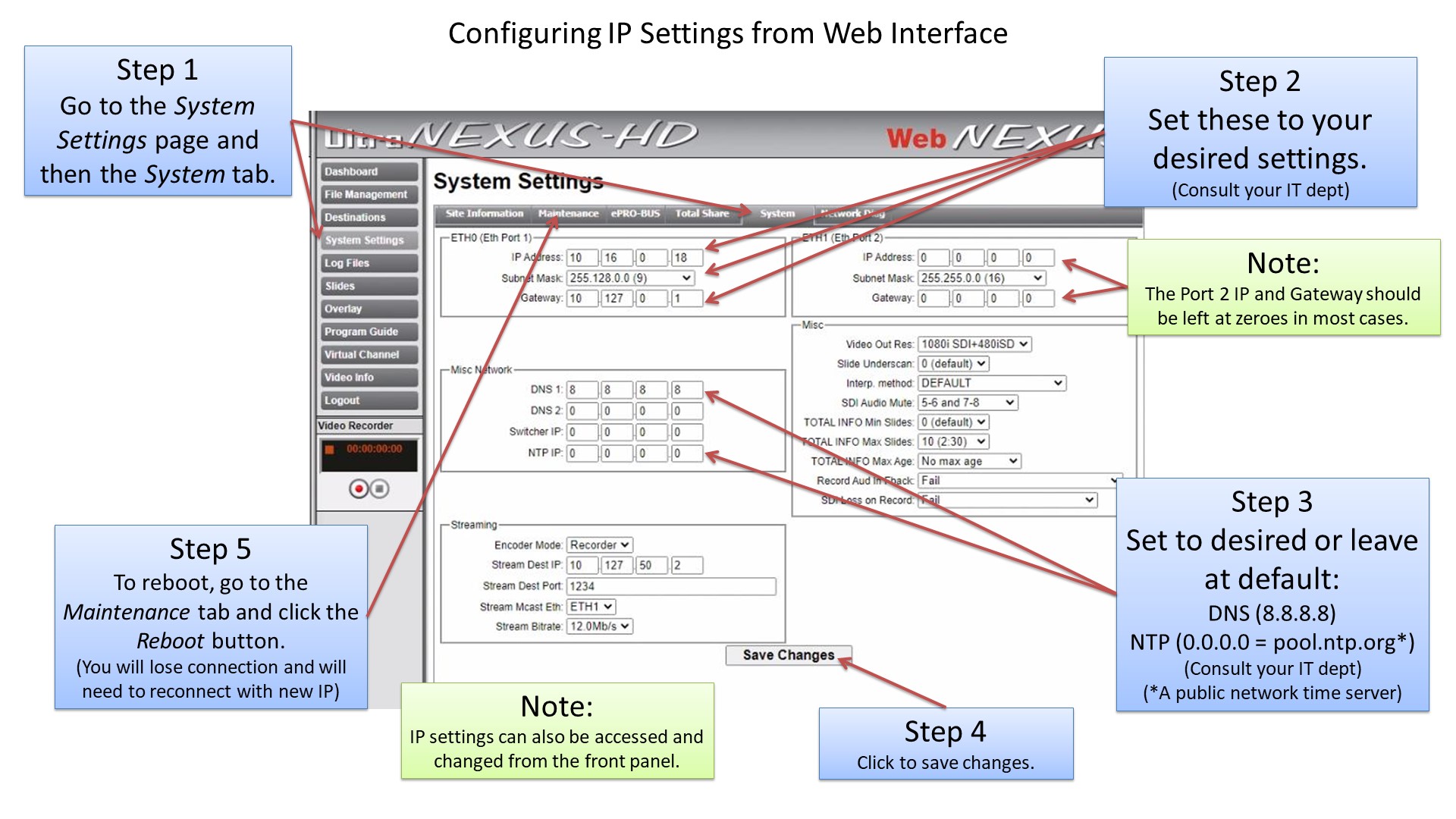

Go to the System Settings page and then the System tab (see diagram below). From there, you can configure the network settings.

Network settings can also be accessed and changed from the unit's front panel. See the knowledge base article for setting IP addresses from the front panel.

(Click picture to view larger)
